Mapped: Portal North Bridge Opens on the Northeast Corridor — Replacing a 116-Year-Old Bottleneck

The Northeast Corridor just got a major upgrade. On March 13, 2026 — two and a half days ahead of schedule — the new Portal North Bridge opened its first track to rail traffic, replacing one of the most notorious bottlenecks in American rail infrastructure.

The original Portal Bridge, built in 1910 by the Pennsylvania Railroad, had carried roughly 450 daily Amtrak and NJ Transit trains across the Hackensack River between Kearny and Secaucus for 116 years. As a two-track swing-span bridge sitting just 23 feet above the water, it had to physically rotate open for maritime traffic — and frequently got stuck, stranding thousands of commuters on the busiest rail line in the United States.

Where Is Portal North Bridge?

Portal North Bridge spans the Hackensack River in Hudson County, New Jersey, at coordinates 40°45′13″N, 74°5′41″W. It sits on the Northeast Corridor (NEC) — the ~450-mile rail line connecting Washington, D.C. to Boston via Philadelphia, Newark, and New York City. The bridge links Kearny on the west bank to Secaucus on the east, just a few miles from New York Penn Station.

Click the markers on the map to explore the NEC route between Philadelphia and New York, including the old and new bridge locations.

Why This Bridge Matters

The old Portal Bridge wasn’t just old — it was the single biggest reliability problem on the entire Northeast Corridor. The swing mechanism, designed in the early 1900s, failed regularly. When it got stuck in the open position, every Amtrak and NJ Transit train between Newark and New York stopped. That’s hundreds of trains per day, serving tens of thousands of passengers.

The NEC carries more passengers than any other rail line in the US and generates over $1 billion annually in ticket revenue for Amtrak alone. A stuck bridge here doesn’t just delay commuters — it cascades delays up and down the entire DC-to-Boston corridor.

The New Bridge: Key Specs

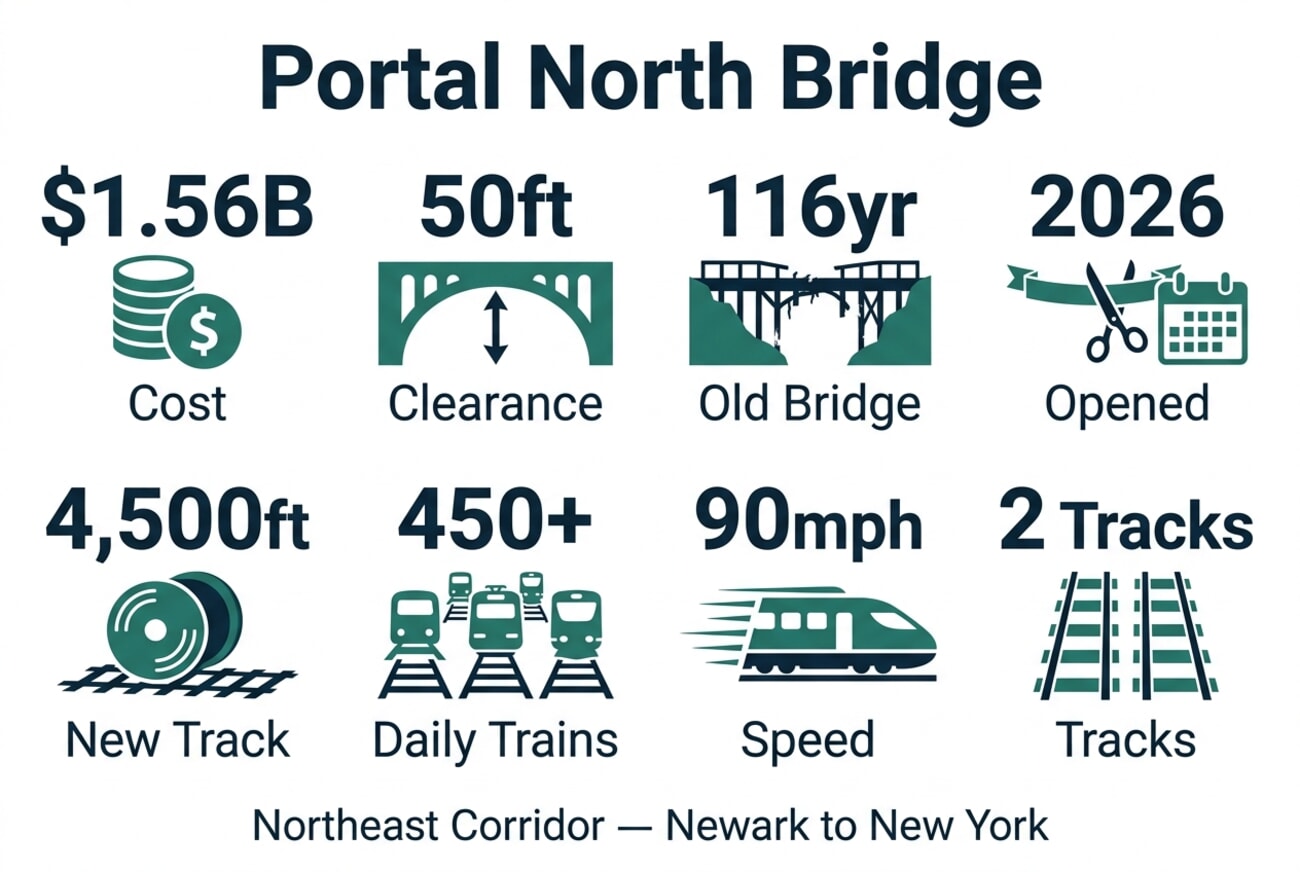

Infographic showing Portal North Bridge key specifications: $1.56B cost, 50ft clearance, 116-year-old bridge replaced, opened 2026, 4500ft new track, 450+ daily trains, 90mph speed, 2 tracks

The new Portal North Bridge is a fixed-span network tied arch bridge — one of the first of its kind for rail in the United States. At 50 feet above the Hackensack River, it clears maritime traffic without ever needing to open, eliminating the mechanical failures that plagued the old swing bridge.

Cost: $1.56 billion construction contract (total project ~$1.5B+)
Design: Three tied-arch spans, 1,200 feet main span
Clearance: 50 feet above mean water level (vs. 23 feet for the old bridge)
Speed: At least 90 mph
Tracks: 2 (matching existing corridor capacity)
New track installed: 4,500 feet during the cutover

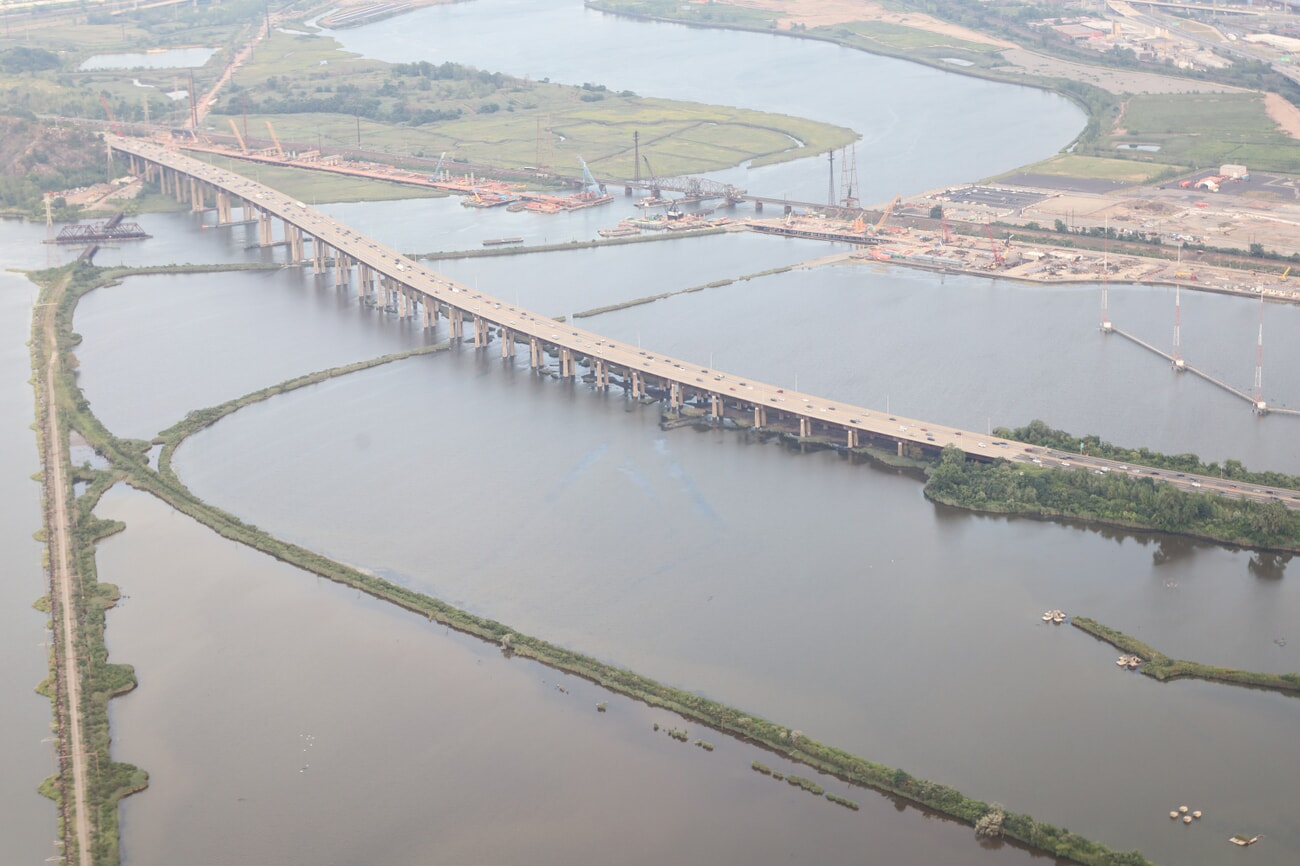

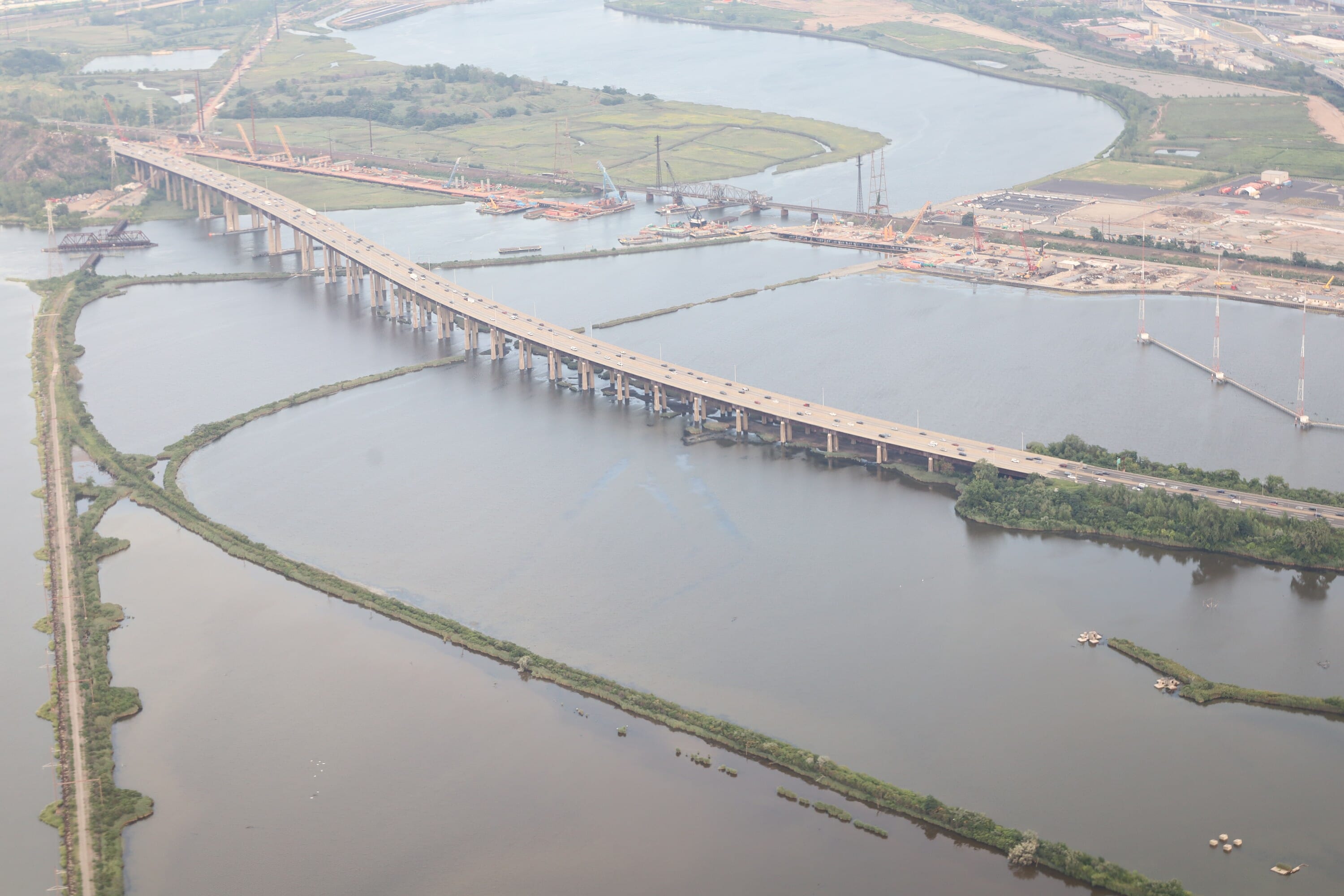

Aerial view of the Portal North Bridge and surrounding bridges over the Hackensack River, August 2023 — Aerial view of the Hackensack River bridges with Portal North Bridge under construction. Photo: Antony-22, Wikimedia Commons, CC BY-SA 4.0

The Cutover: How They Switched

Connecting a brand-new bridge to an active, century-old rail corridor isn’t simple. Amtrak and NJ Transit executed what they called the “first major bridge cutover project ever on the Northeast Corridor” between February 15 and March 15, 2026.

During the cutover, NJ Transit rail service was reduced by approximately 50%. Crews worked around the clock to:

Remove existing catenary poles in the planned alignment
Install two new interlockings (track switching points)
Lay 4,500 feet of new track connecting the bridge to the existing right-of-way
Finalize the new catenary (overhead electrical) system
Test the signal system

The bridge was originally scheduled to open on March 16, but when a catenary pole failed on the old Portal Bridge, Amtrak and NJ Transit made the call to shift service onto the new bridge early. Track 1 entered service on March 13, 2026 — two and a half days ahead of schedule.

The Gateway Program: What Comes Next

Portal North Bridge is one piece of a much larger puzzle. It’s a cornerstone of the Gateway Program, a multi-decade effort to double rail capacity between Newark and New York by building new tunnels under the Hudson River and rehabilitating the existing ones.

Key upcoming milestones:

Fall 2026: Second phase of Portal North Bridge cutover (connecting Track 2)
July 2028: Planned demolition of the original 1910 Portal Bridge
Hudson Tunnel Project: New rail tunnel under the Hudson River (construction underway)

When the full Gateway Program is complete, the Newark-to-New York segment will go from two tracks to four, dramatically increasing capacity and reliability on the most congested stretch of the NEC.

Key Takeaways

The new Portal North Bridge replaced a 116-year-old swing bridge that was the biggest single point of failure on the Northeast Corridor
The $1.56 billion fixed-span bridge rises 50 feet above the Hackensack River — more than double the old bridge’s clearance — and never needs to open for ships
Track 1 entered service on March 13, 2026, two days ahead of schedule, after a month-long cutover that temporarily halved NJ Transit service
Track 2 cutover is planned for Fall 2026, with the old bridge scheduled for demolition in July 2028
It’s a cornerstone of the Gateway Program, which will eventually double rail capacity between Newark and New York

Featured image: NJTScottMaas / Wikimedia Commons (CC BY-SA 4.0)
